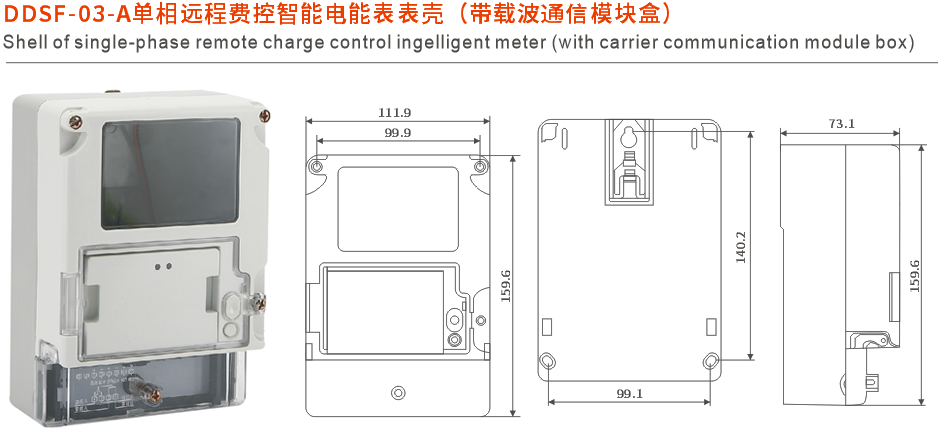

DDSF-03-A單相遠程費控智能電能表表殼
2767 2022-04-13
技術參數
◎規格：端鈕盒銅條，小A(8×10.5)、中A(10×12)、大A(11×13)
◎脈沖信號線：2、4、6、8線
◎電流配置：5（30）A帶1-8組輔助端口
10（60）A帶1-8組輔助端口
20（100）A帶1-8組輔助端口
◎說明：09年版國網單相遠程費控表殼，罩殼帶開蓋記錄柱、有
編程按鍵及輪顯按鍵。
TECHNICAL PARAMETERS
◎Specifications: copper bar of terminal box, small A(8×10.5), middle
A(10×12),large A(11×13)
◎Pulse signal lines:2,4,6,8,lines
◎Current configuration: 5(30)A with 1-8 sets of auxiliary ports
10(60)A with 1-8 sets of auxiliary ports
20(100)A with 1-8 sets of auxiliary ports
◎Note:2009 version state grid single-phase remote charge control
meter, the shell has recording column of shell open, there are pro-
gramming and slideshow buttons.
